Other SmartBox Models Installation

This article contains instructions for previous SmartBox models.

See this article for the current MS5 SmartBox installation instructions.



In this article:

Specifications

For MS5 Series SmartBox specs, see SmartBox Specifications.

MS4 Base SmartBox

MS4M Base SmartBox

MS3E / MSE30 Expansion SmartBox



Installation Manuals

MS4 / MS4M Base SmartBox

MS3 / MS3M Base SmartBox

MS3E / MSE30 Expansion SmartBox

MS200 Base SmartBox

MS200X Base SmartBox

MS210X Expansion



Installation Videos



Accessibility

Before installation, keep in mind the accessibility for users of your SmartBox. This is especially important for customer-facing applications. To ensure that all users are able to access keys, please follow American Disabilities Act (ADA) guidelines:



If SmartBox is Unobstructed

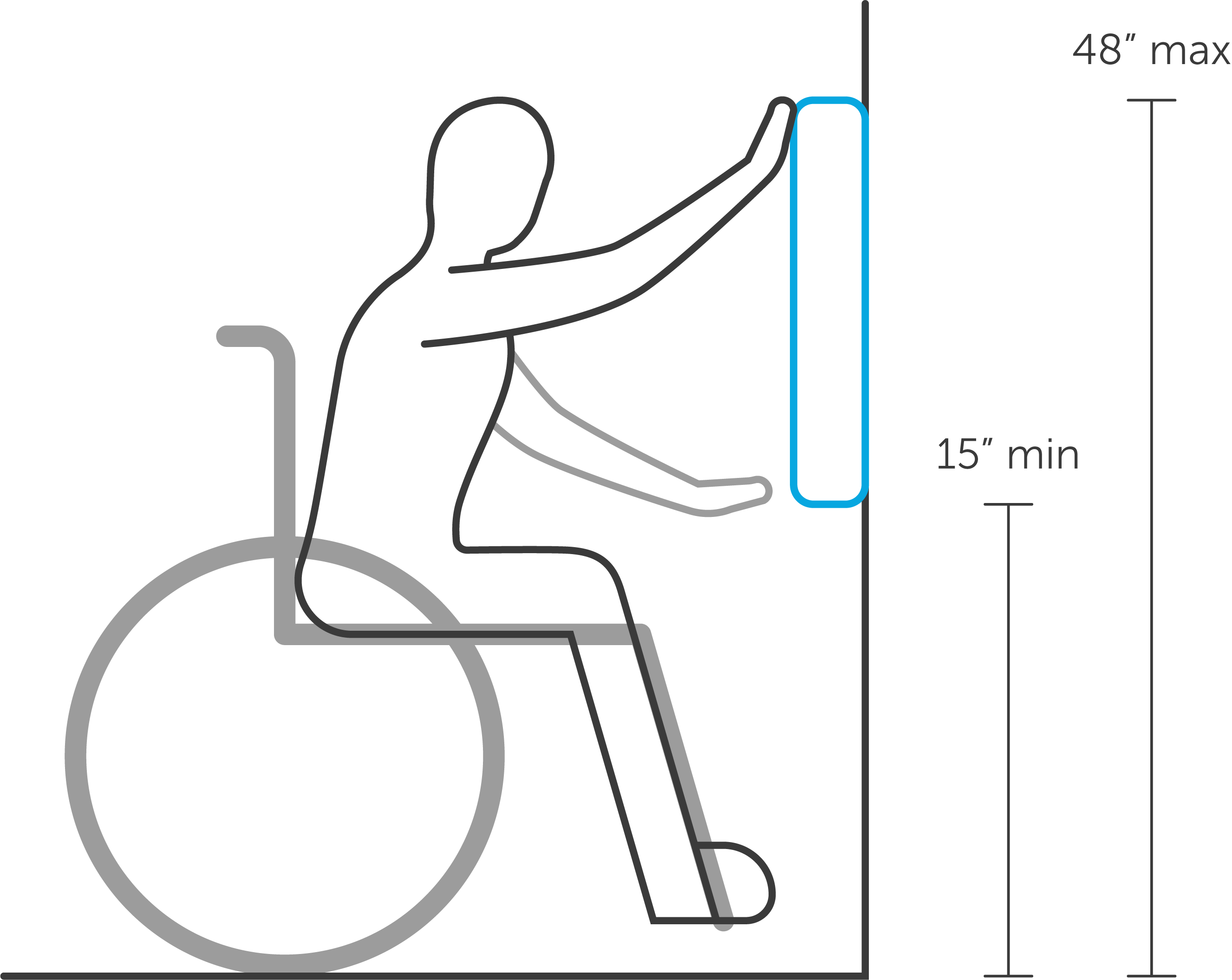

If the SmartBox is unobstructed from the front, the highest touch point should be no more than 48" (122 cm) and the lowest 15" (38 cm).




If SmartBox is Obstructed (Front Access)

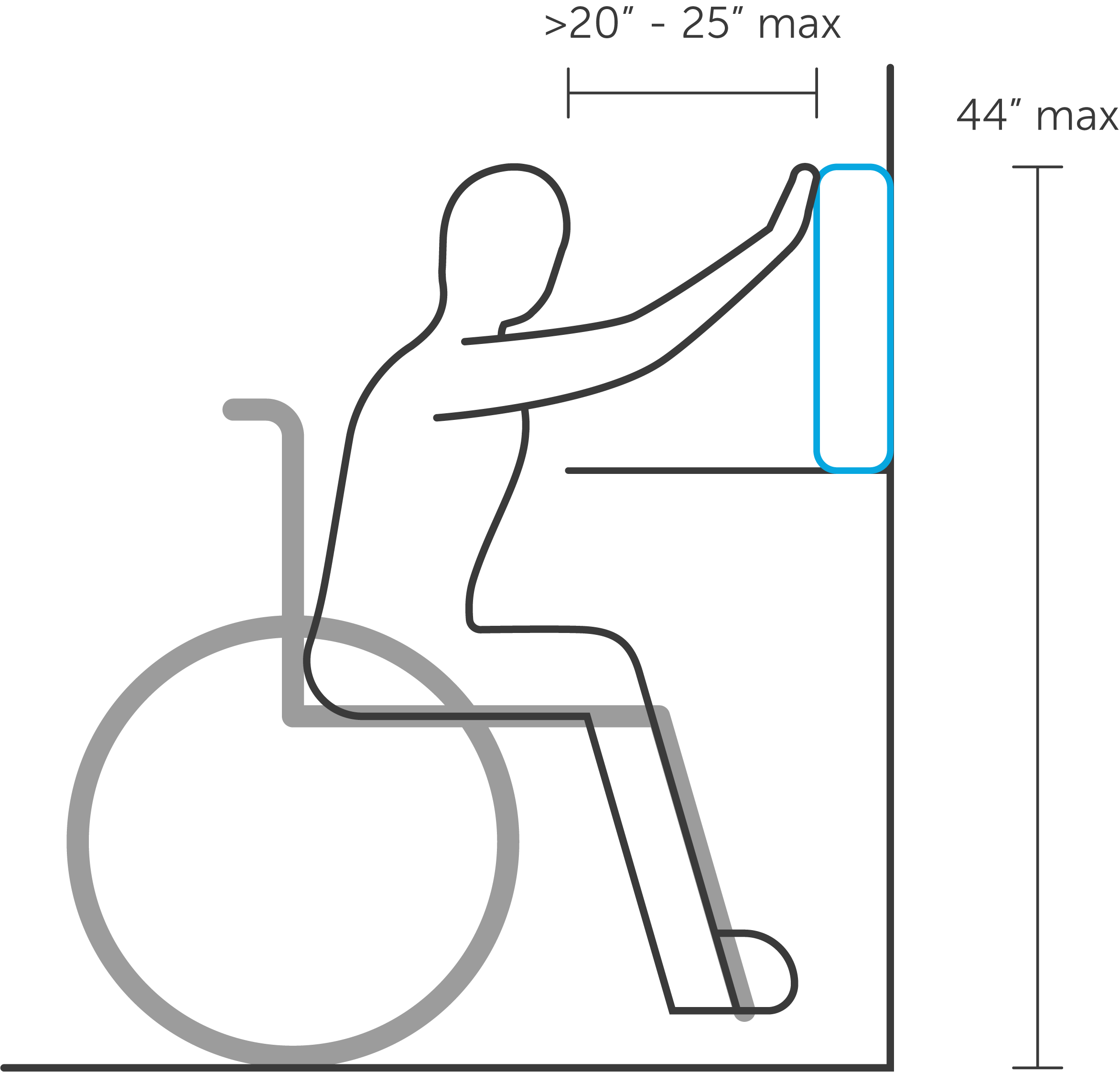

If the SmartBox has an obstruction in front (such as a countertop) with a depth of 20" (51 cm) or less, the same maximum height of 48" (122 cm) applies. If the obstruction is deeper than 20" (51 cm), the highest touch point is 44" (112 cm) . The obstruction should be no deeper than 25" (63 cm).

ADA_Kiosk_Guideline_Diagrams_02.png                ADA_Kiosk_Guideline_Diagrams_03.png



If SmartBox is Obstructed (Side Access)

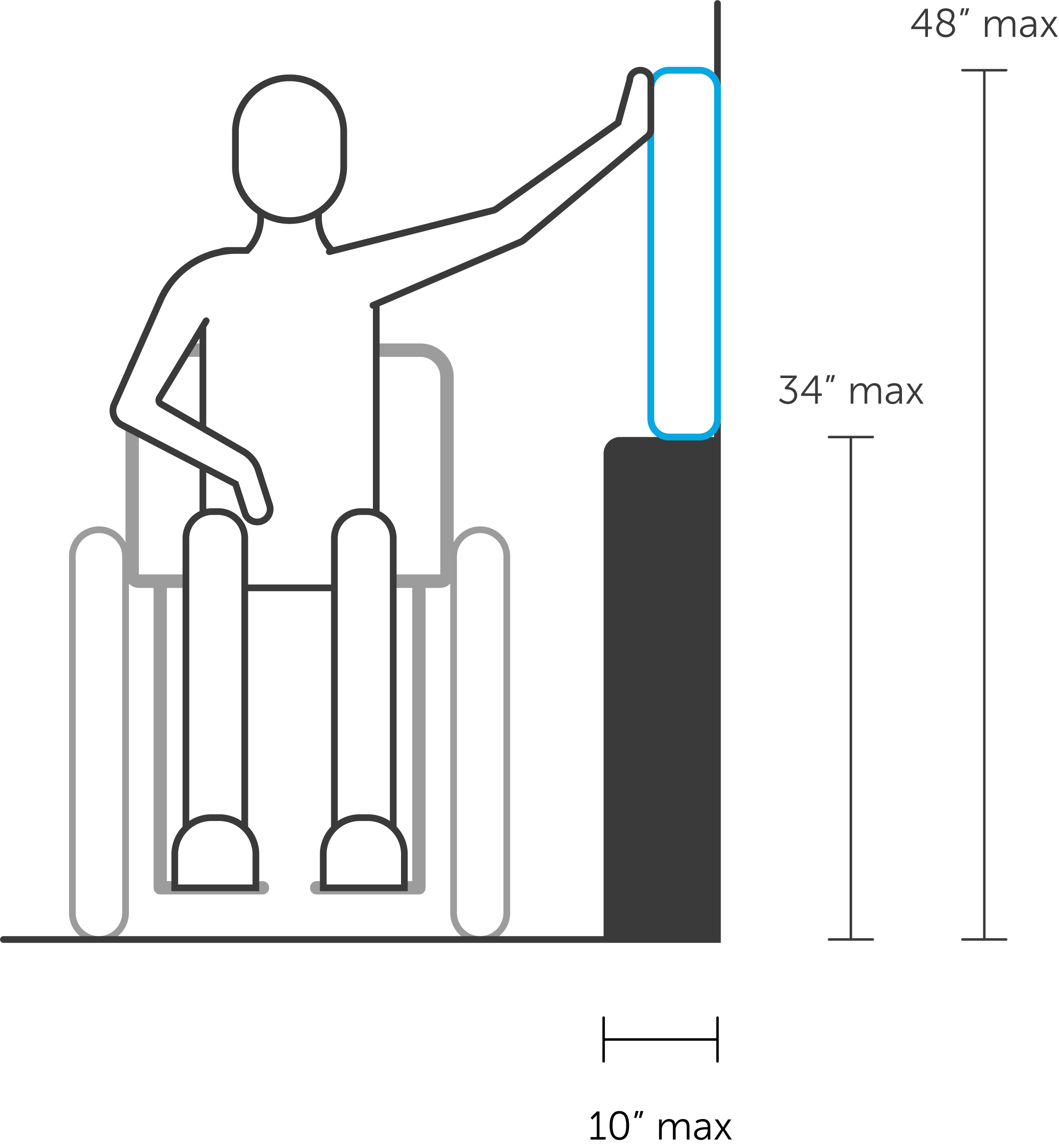

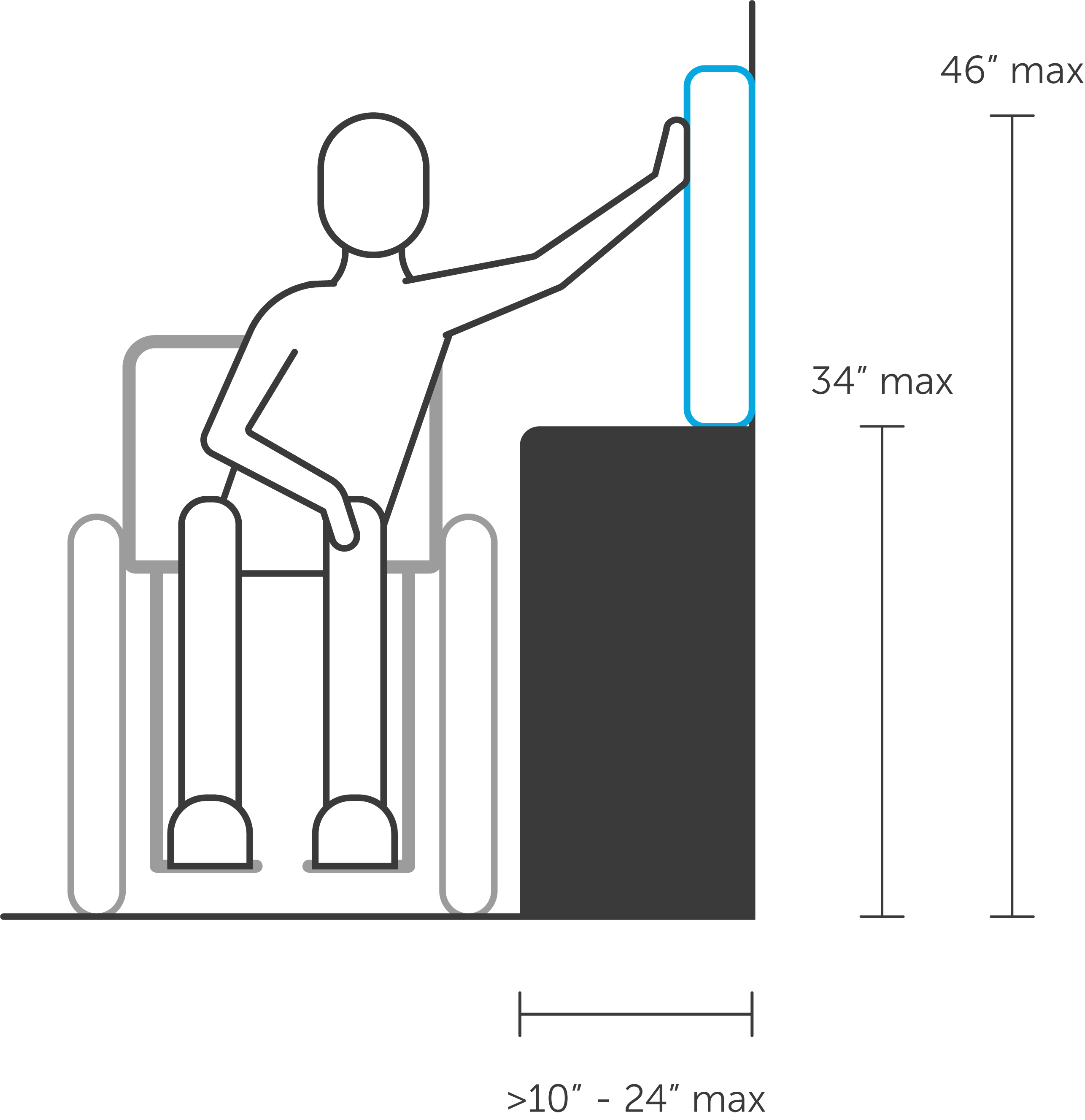

If the SmartBox is only accessible for a wheelchair user by reaching to the side (such as in a narrow hallway) and has an obstruction in front with a depth of 10" (25 cm) or less, the same maximum height of 48" (122 cm) applies, but the maximum height for the obstruction is 34" (86 cm). If the obstruction is deeper than 10" (25 cm), the highest touch point is 46" (116 cm) . The obstruction should be no deeper than 24" (61 cm).

ADA_Kiosk_Guideline_Diagrams_05.png                         ADA_Kiosk_Guideline_Diagrams_06.png



Surrounding Floor Space

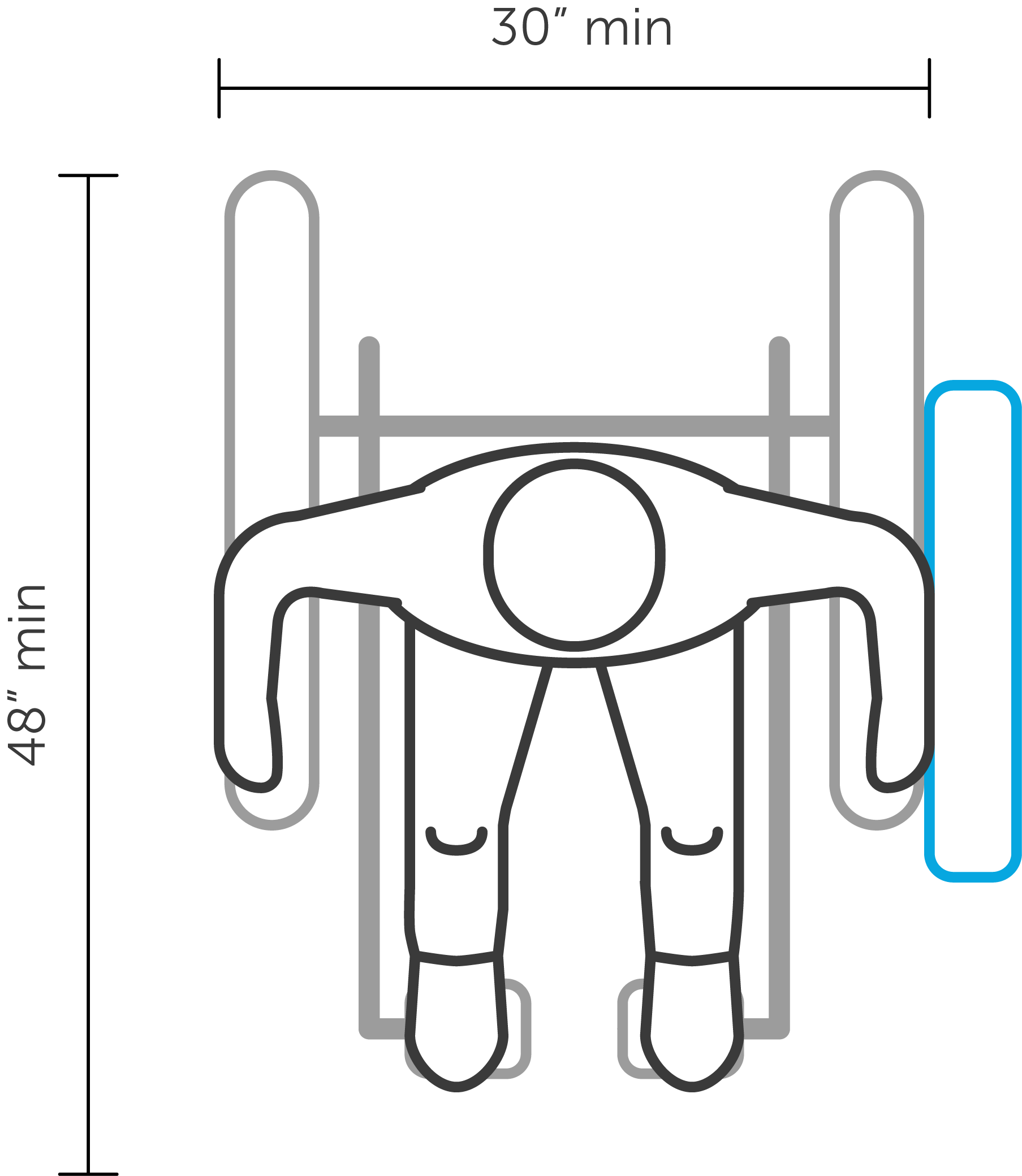

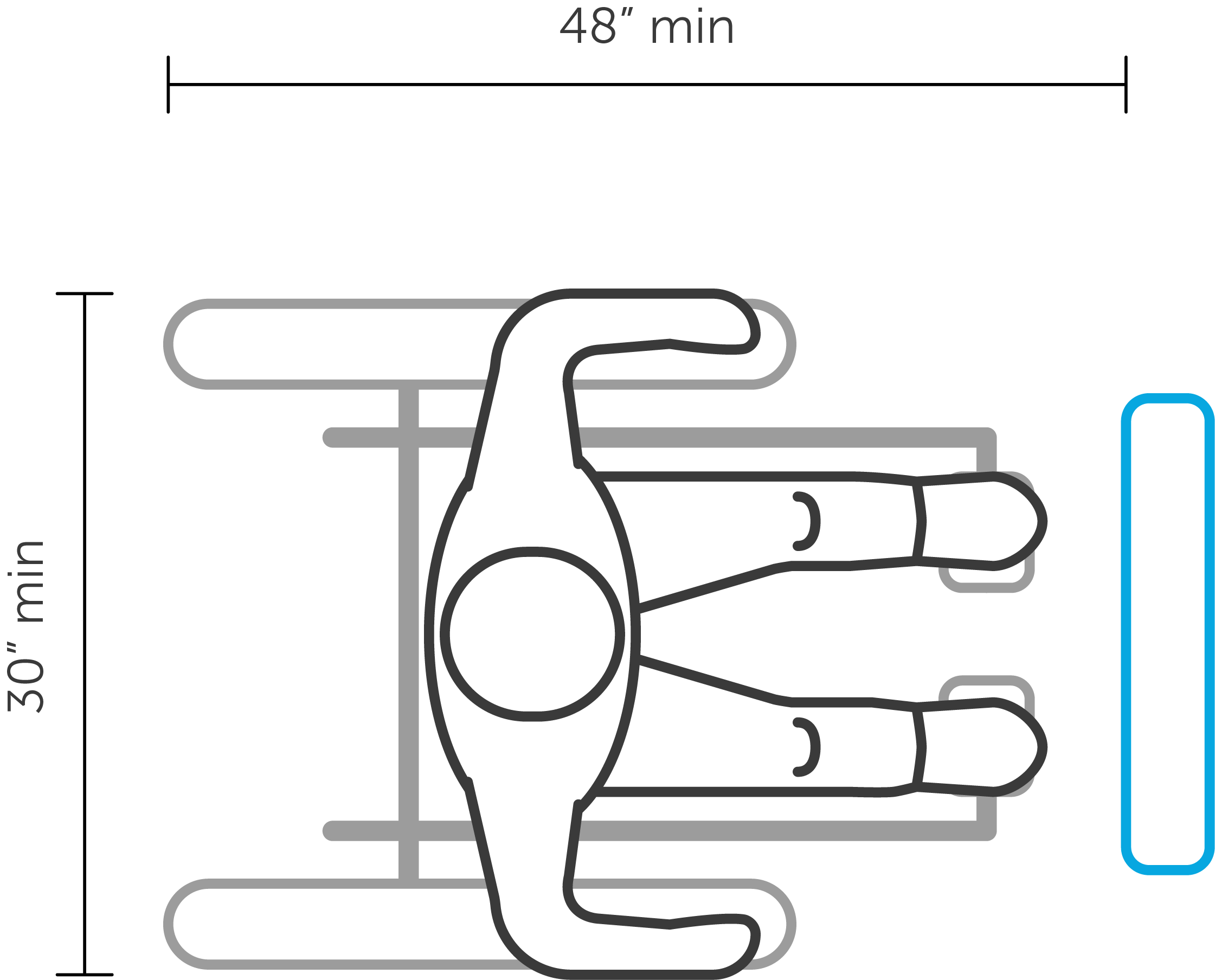

For wheelchair access, have a minimum ground clearance of 30" (76 cm) by 48" (122 cm) for both front-access and side-access in front of the SmartBox.

ADA_Kiosk_Guideline_Diagrams_08.png                ADA_Kiosk_Guideline_Diagrams_07.png
